Modus prefab inspection pits

Affordable quality with attractive specifications and extensive equipment

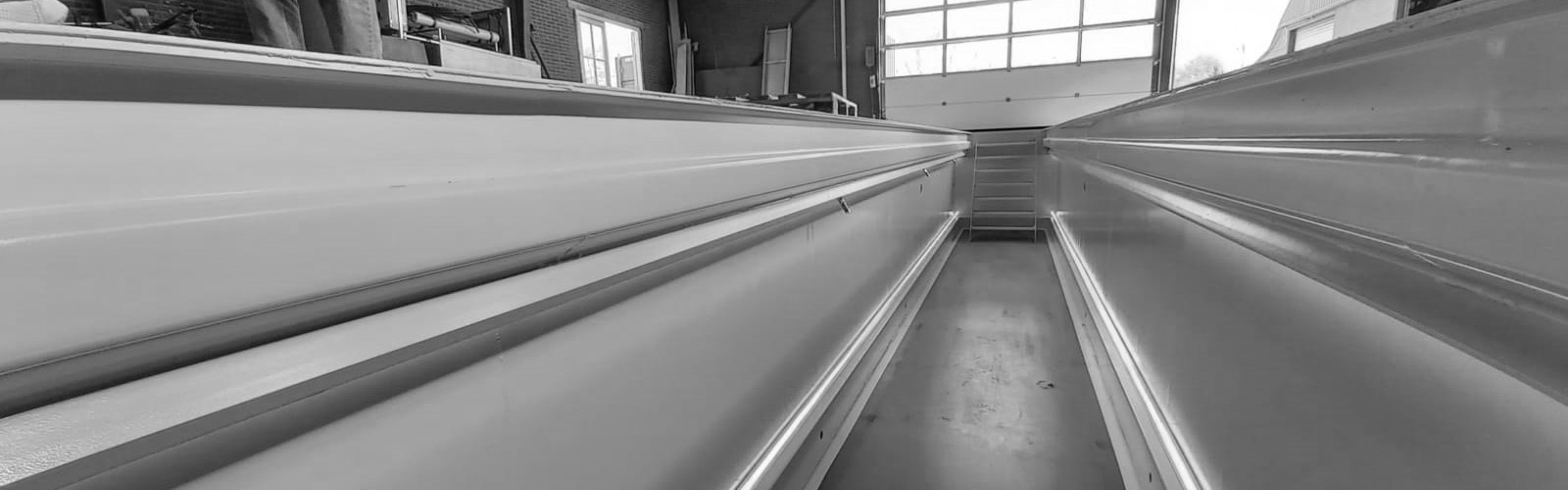

The Cleverpit® Modus steel prefab inspection pit is the result of years of experience and in-depth knowledge of automotive workshops. The design was devised around the fitter, creating a very safe, well-arranged and spatial workplace. All components are perfectly integrated in the design of the prefab pit.

previous arrow
next arrow
Slider

Standard well equipped

Every Modus prefab pit is equipped with:

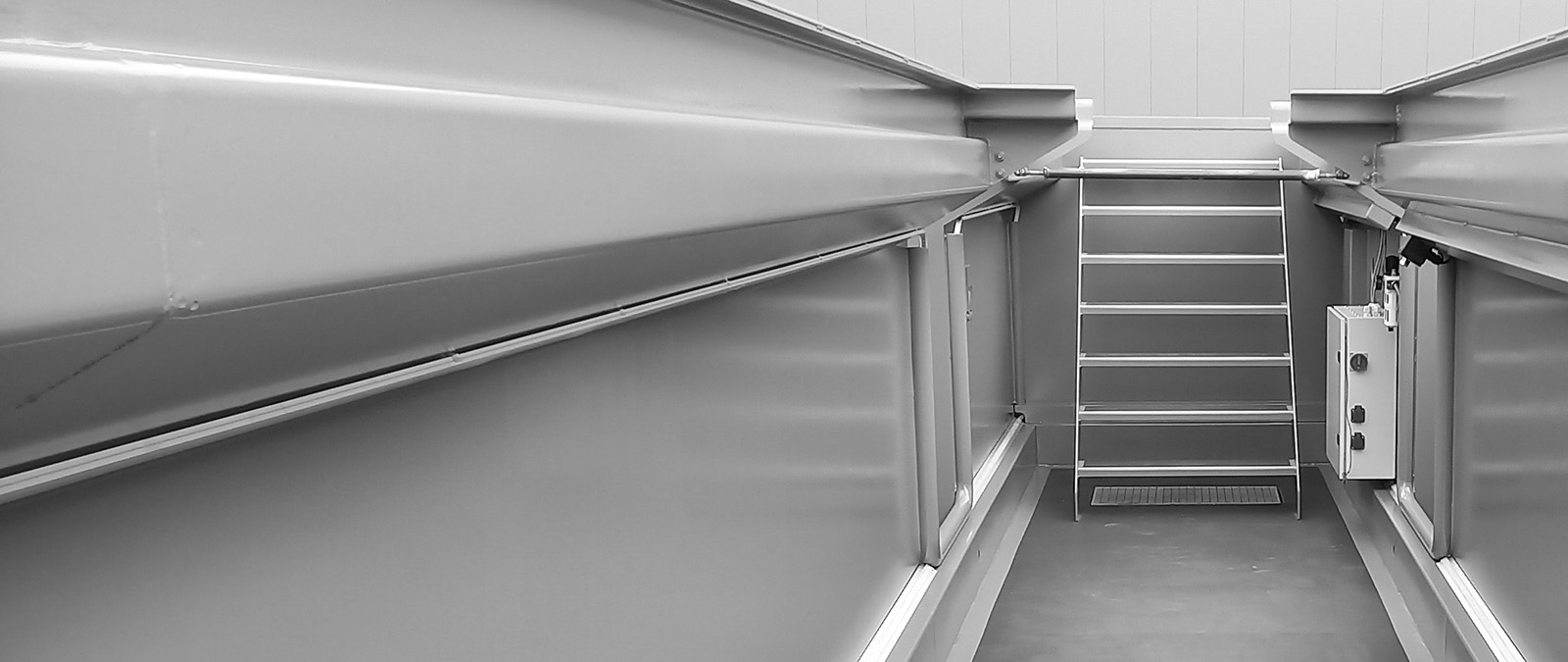

  • ventilation ducts with rails for a possible pit jack;
  • construction resistant to thirty-ton axle load;
  • integrated lighting, compressed air and hydraulics;
  • anti-slip coating on floor and stairs;
  • preparation for floor pit jacks and suspended pit jacks;

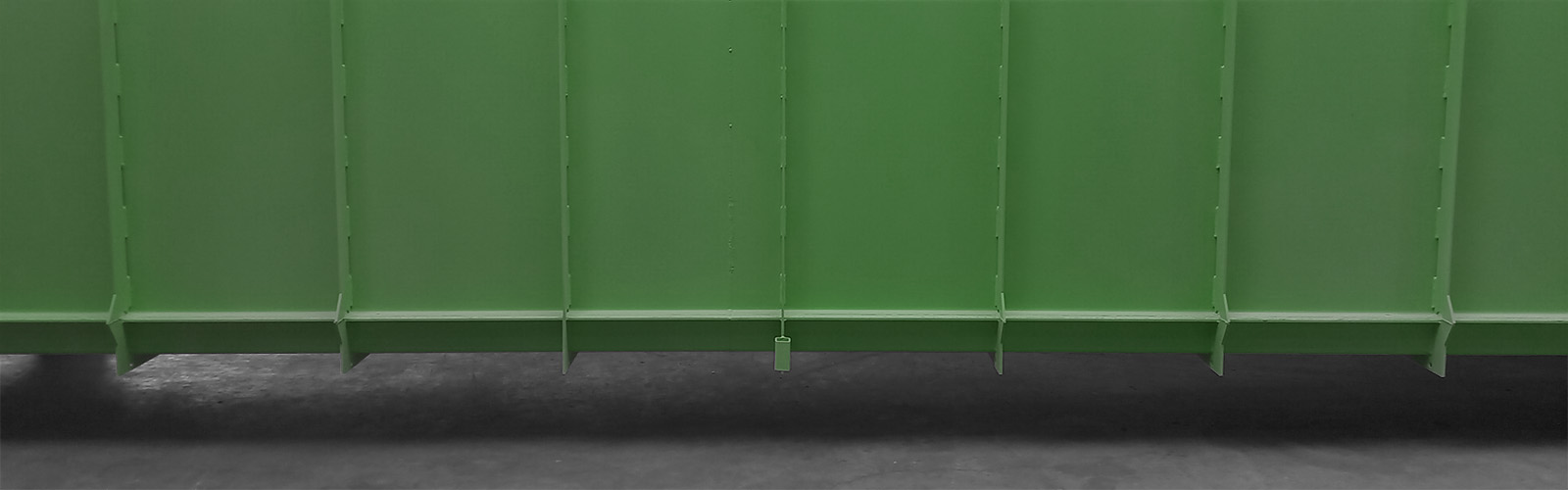

  • sheet steel walls ensure strength and 100% watertight hull;
  • great freedom of movement for the mechanic;
  • permanently protected against corrosion and wear;
  • easy to maintain, easy to clean;
  • extensive control cabinet prepared for ventilation equipment & wall sockets.

Despite the high quality, excellent specifications and extensive equipment, the Modus has remained very affordable. All in all, the Modus prefab pit is more economical than a concrete pit. In addition, the extremely strong construction allows long pits up to a length of forty meters.

Installation and technical specifications

Curious as to how the installation of a steel prefab pit works? Click here.

Below you will find the technical specifications.



Technical specifications

Depth (D) Standard

Optional

1.600 mm

1.400 - 1.850 mm

Width top (A) Standard

Optional

1.100 mm

900 - 1.200 mm

Max. width below (B) Standard

Optional

1.600 mm

1.400 - 1.700 mm

Width between ventilation ducts (V) Standard

Optional

1.400 mm

1.200 - 1.500 mm

Axle load (S) Standard

Optional

20.000 kg

30.000 kg
